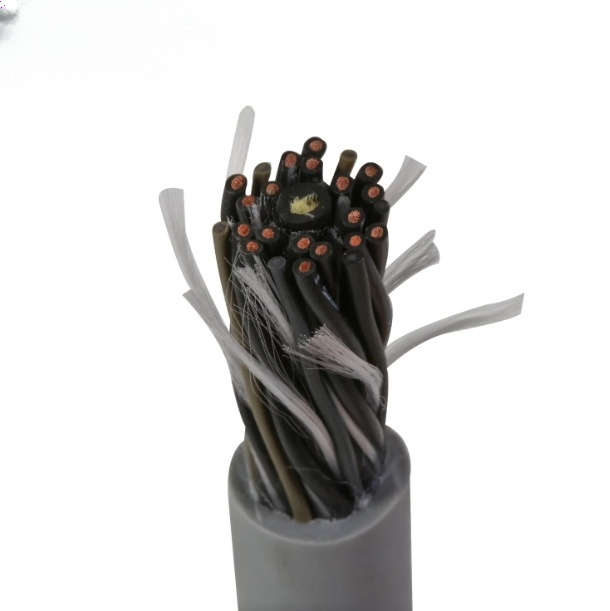

Inoshandiswa zvakanyanya munzvimbo dzine hasha dzemukati nekunze, sengetani dzekudhonza, nhare mbozha dzine zvinodiwa zvemagetsi uye zvemuchina zvakakwirira, dzisingafe pamafuta, dzisingapfeki, dzisingaite acid, dzisingapinde mualkali, dzisingapinde mvura, uye dzisingachinji kuUV. Inokodzerawo chiratidzo uye kutonga kweotomatiki CNC machining nzvimbo uye yekudhonza ketani masisitimu akadai se servo motors kana servo encoder. Zvakare mashandisirwo ekutumira data, kuyerwa, mhinduro, encoder, solvers, tachometers, masaini uye masisitimu munzvimbo dzakaita semacrane uye nzvimbo dzekufambisa uye otomatiki kugadzirwa maitiro.

 Features

• CE, UL/CUL certified

• Inomira murazvo, inodzivirira UV, yakaderera kunamatira, yakaderera kupfeka

• Inopesana zvakanyanya negirisi, inotonhorera uye mafuta ekuzora
il inodzivirira
maererano neO O. 60811-404

Mashoko

• RoHS inoenderana

• CE inoenderana ne2014/35/EU-Guideline (“Low Voltage Directive”)

• Yakareba kwazvo sevhisi hupenyu, yakanakisa mutengo / uremu
uremu
nzvimbo
uremu
uremu
/> Conductor zvinhu: Stranded isina mhangura

Conductor giredhi maererano neDIN VDE 0295 kirasi 6, IEC 60228 cl. 6

Core insulation: PVC-J-105-003 (2105-LF)

Core identification: < 0,5 mm²: 5 cores uye pazasi ane mavara-coded, zvinoenderana n. DIN 47100, tambo dzema-multi-core ane anopfuura 5 cores ane mavara-coded uye anosiyaniswa nechena inki dots; ≥ 0,5 mm²:

5 cores uye pazasi ane mavara-coded, kusanganisira yero/girinhi pasi waya, zvinoenderana n. DIN 47100, multi-core cables ane anopfuura 5 cores anoshandisa waya nhema neinki nhamba chena kusiyanisa (kana pane zvakakosha zvinodiwa, inogona kugadzirwa painodiwa)

Cabled core wires <10: core waya dzakamonyoroka muzvikamu zvine mapfupi mapiche

&nbs       Core wires ≥11: tambo dzepakati dzakakanganiswa kaviri

Outer sheath: PUR polyether polyurethane

Sheath color: orange RAL 2004; grey RAL 7001; dema RAL 9005 (optional)

Rated voltage & nbsp;    25 uye pamusoro: 0.6/1KV; 0.75 kusvika 16: 300/500V; 0.5 uye pasi pe300/300V

Test voltage 3500V; 2000V; 1500V

Conductor kuramba pa +20 ℃ acc. kuDIN VDE 0295 cl. 6/IEC 60228 cl. 6

Insulation resistance pa +20 ℃ min. 20 GΩ x km

Kubhenda radius yakagadziriswa 4 x d

Bending radius inofamba 7,5 x D

Kufambisa kukurumidza kuzvitsigira: max. 10 m/s, Kutsvedza: max. 5 m/s

Waya kureba kuzvitsigira/kutsvedza max. 400 m

Kukwirisa max. 100 m/s²

Bending cycle <35 times/Min.     Hupenyu > 12 miriyoni nguva

Tembiricha yakagadziriswa - 40 ℃/ +105 ℃

Tembiricha yegiredhi renhare - 30 ℃/ +105 ℃
